🔄 System and Synthetic Biology¶
Exam Importance: ⭐⭐⭐⭐ (High)
Key topics to focus on:
- Biological networks (Metabolic, Gene Regulatory, Signaling)
- Feedback loops (Positive and Negative)
- Homeostasis
- Synthetic Biology and CRISPR-Cas9
- DBTL cycle
Systems Biology: Overview¶
Systems Biology is a big-picture view of biology that focuses on:
- ✅ How engineers study complex systems
- ✅ Focus on interactions, not isolated parts
- ✅ Many interacting components
- ✅ Reductionism is not enough
From Parts to Systems¶
| Traditional Biology | Systems Biology |
|---|---|
| One gene, one protein | Networks |
| Individual parts | Integrated wholes |
| Reductionist | Holistic |
Systems biology is an interdisciplinary approach that studies complex living systems as integrated wholes, focusing on interactions between components (genes, proteins, cells) rather than just individual parts.
Uses computational models and large-scale data (genomics, proteomics) to understand how interactions create emergent properties and predict system behavior.
What is a Biological System?¶
Definition: A set/network of interacting biological components—genes, RNAs, proteins, metabolites, and regulatory elements—that collectively execute, coordinate, and regulate a specific cellular function.
Systems Biology Approach:¶
- Investigating components of cellular networks and their interactions
- Applying experimental high-throughput and omics techniques
- Integrating computational and theoretical methods with experimental effort

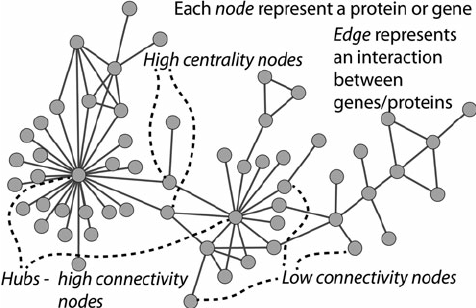

Key Idea: Networks¶
Systems biology uses network theory to visualize and analyze complexity:
| Component | Description | Example |
|---|---|---|
| Nodes | Individual biological components | Genes, proteins, metabolites |
| Edges | Relationships between molecules | Binding, reactions, signaling |
By combining nodes and edges, researchers create an "Interactome" map to identify hubs (critical molecules) and bottlenecks.
Types of Biological Networks¶
- Metabolic networks
- Gene regulatory networks
- Signaling networks

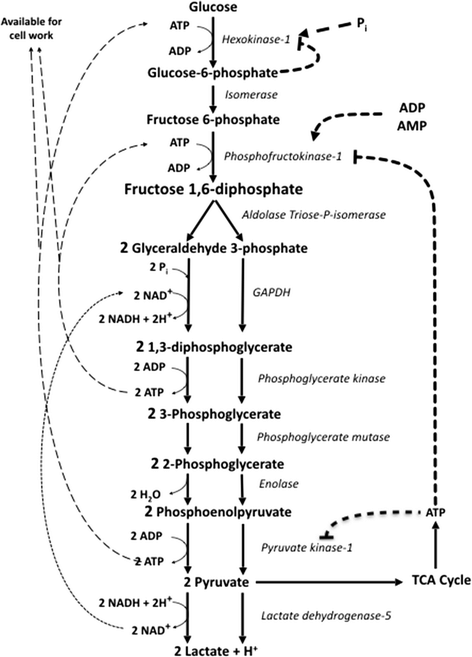

Metabolic Networks¶
Metabolism: Sum of chemical reactions that synthesize energy and building blocks.
| Component | Description |
|---|---|
| Nodes | Metabolites (substrates and products) - glucose, ATP, pyruvate |
| Edges | Biochemical reactions (facilitated by enzymes) |
| Directionality | Arrows indicate flow from reactants to products |
Example: Glycolysis pathway

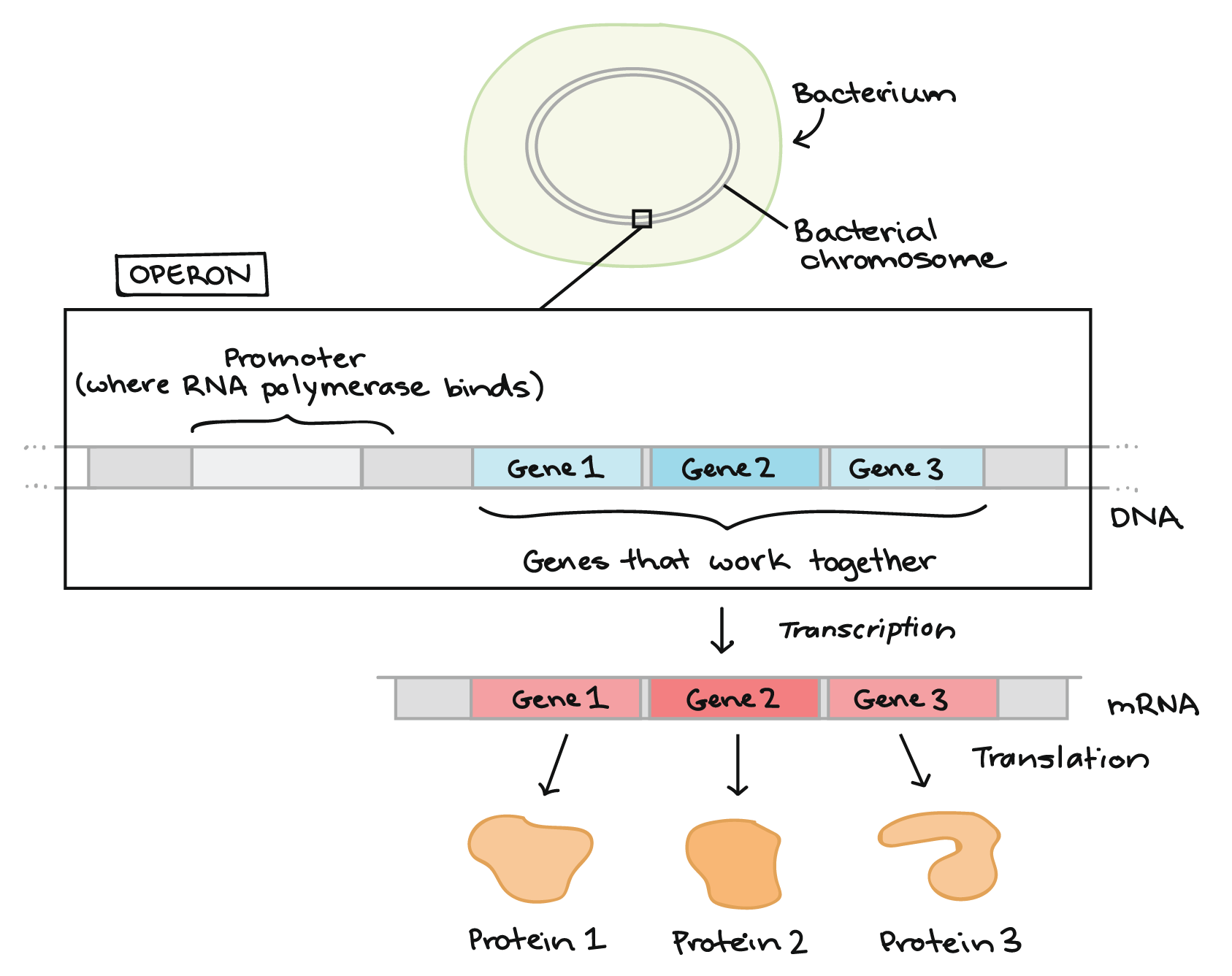

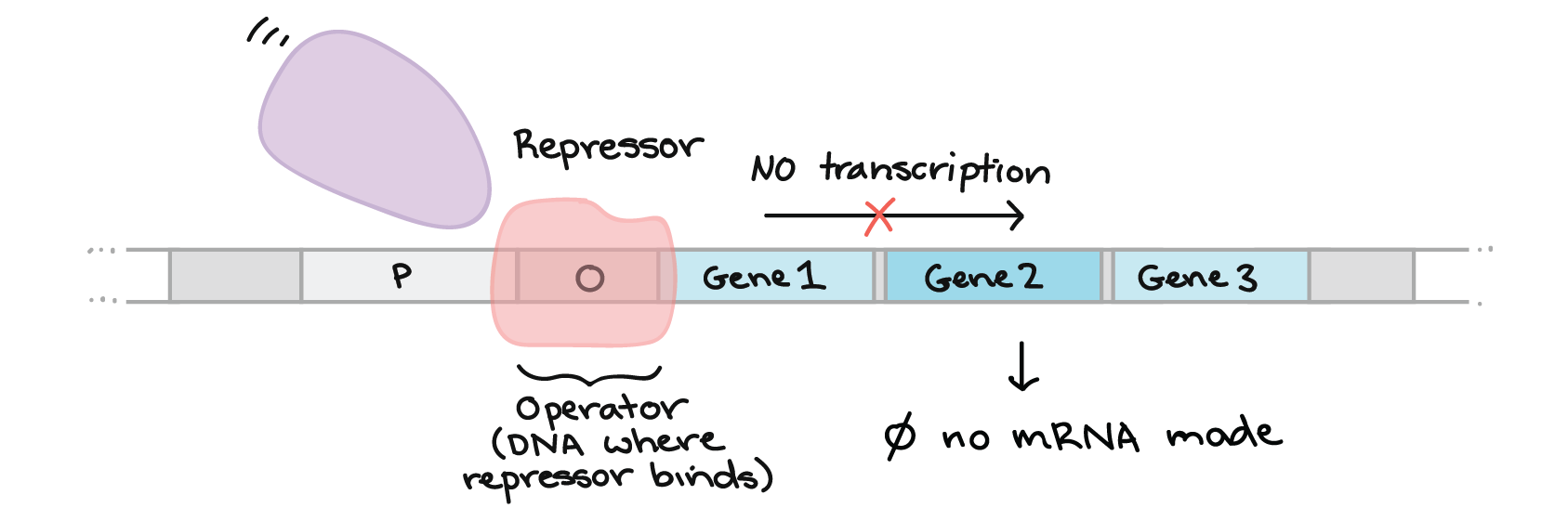

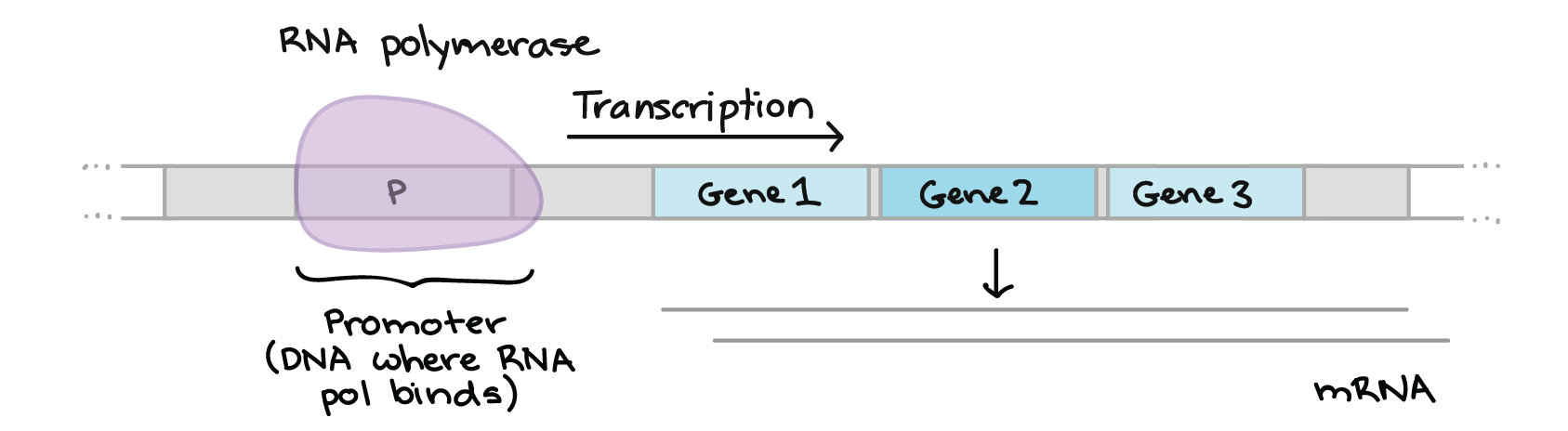

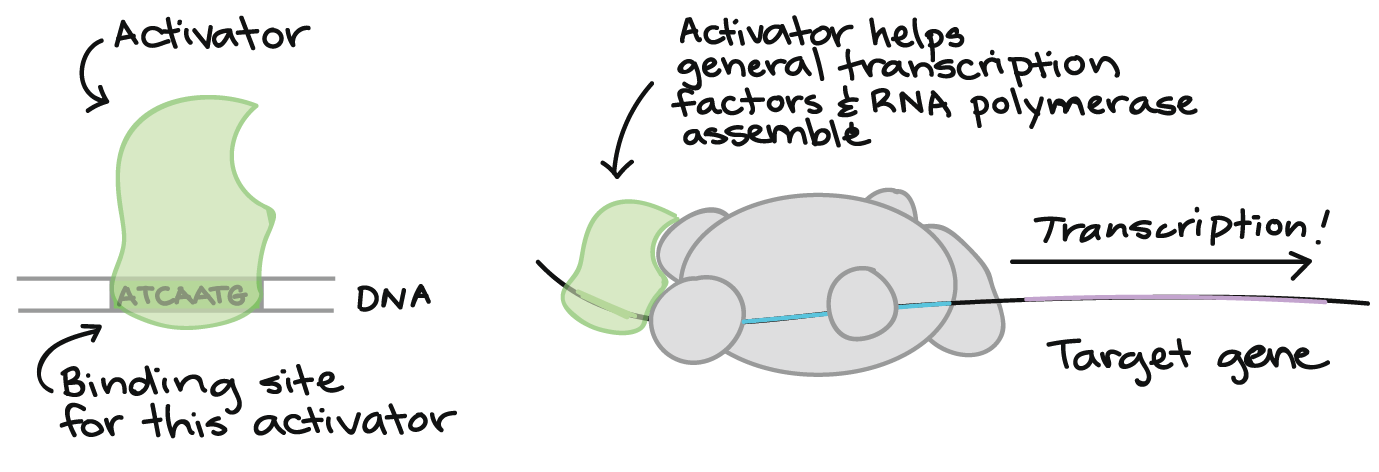

Gene Regulatory Networks¶
Genes control and regulate other genes using on/off logic.
| Component | Description |
|---|---|
| Nodes | Genes and Transcription Factors (TFs) |
| Edges | Regulatory links (TF binding to DNA) |
| Actions | Activate ("turn on") or Repress ("turn off") |

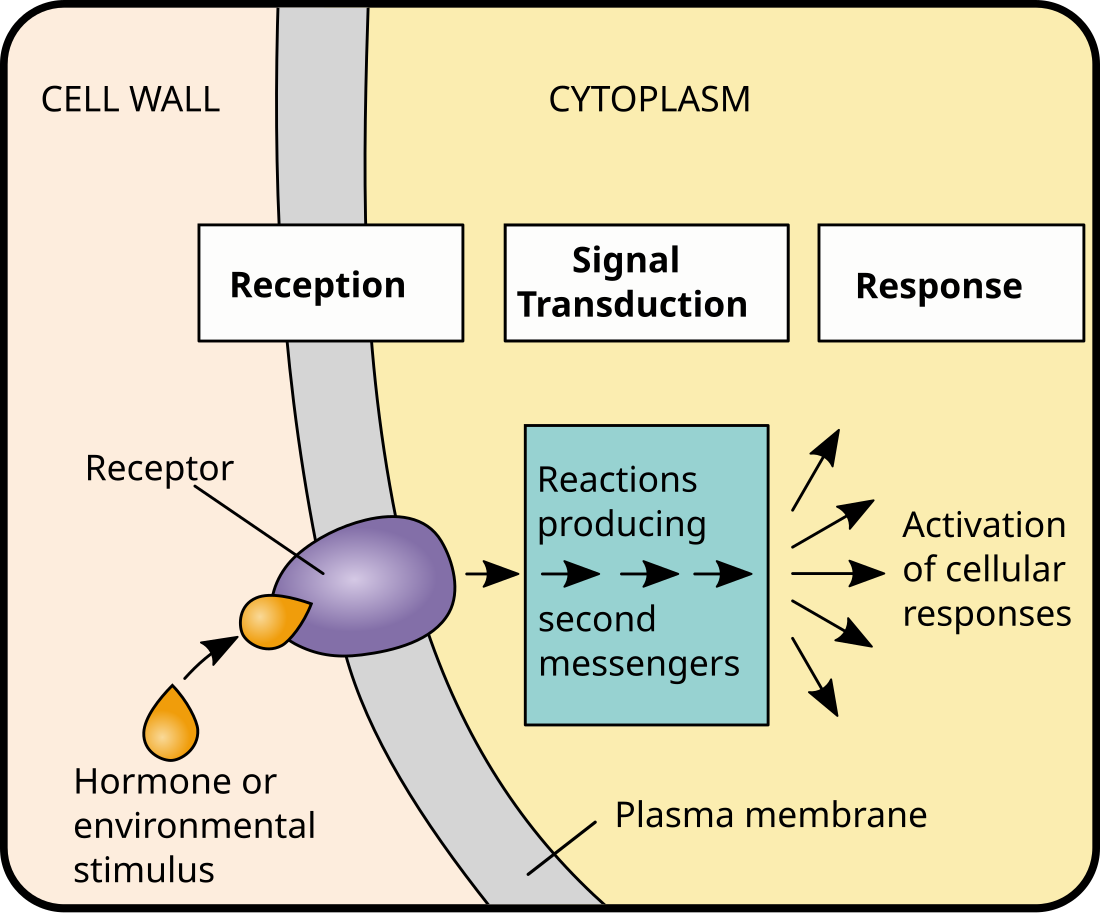

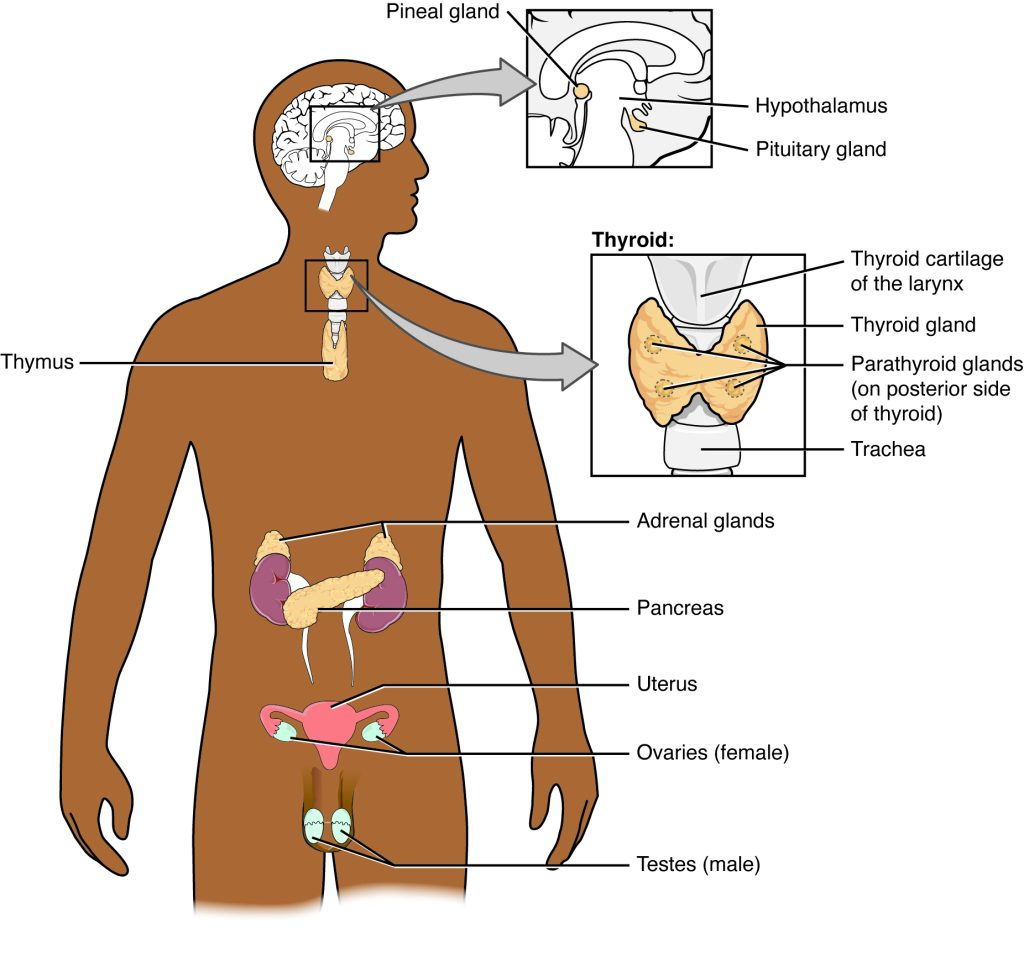

Signaling Networks¶
Signaling networks are the cell's "communication circuitry" that translates environment into action.
Components:¶
- Responsive Sensors: Cells detect stimuli via surface receptors
- Inputs:
- Hormones: Long-range messengers (e.g., Insulin)
- Growth Factors: Local signals for cell division/healing
Information Processing:¶
The network acts as a biological CPU that:
- Integrates multiple inputs
- Amplifies weak signals
- Uses crosstalk between pathways
Core Features of Complex Systems¶
1. Nonlinearity¶
A small change in input can lead to a disproportionately large shift in output.
Cancer Example
Slow changes accumulate linearly until the system abruptly "switches" into a malignant, aggressive growth state.
2. Feedback Loops¶
Regulatory mechanisms where output influences its own activity.
3. Robustness¶
System stability despite perturbations.
Feedback Loops¶
Definition: A regulatory mechanism where the output of a process influences its own activity upstream.
Function: Maintain homeostasis - keep physiological parameters within optimal ranges.

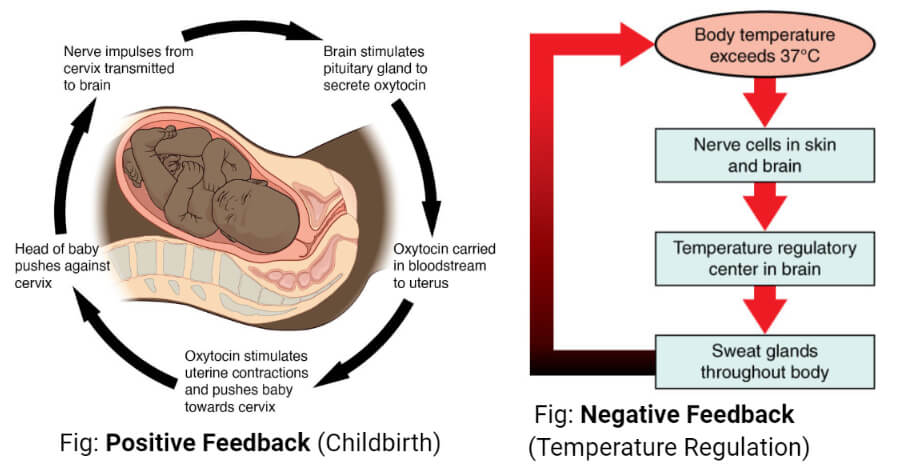

Types of Feedback Loops¶
| Type | Description | Example |
|---|---|---|
| Positive Feedback | Output amplifies original stimulus | Childbirth: contractions → oxytocin → more contractions |
| Negative Feedback | Output reduces original stimulus | Blood glucose: high glucose → insulin → lower glucose |
Remember
Negative feedback is the most common type in biological systems because it stabilizes the system.
Homeostasis¶
The maintenance of a stable internal environment despite external changes.
Examples:¶
- Body temperature regulation
- Blood glucose regulation
- Blood pressure regulation
- pH balance
Robustness¶
Robustness ensures that life continues even when conditions are not perfect.
Components:¶
| Feature | Description |
|---|---|
| Noise Filtering | Regulatory loops ignore molecular "static" |
| Environmental Tolerance | Performance stable despite parameter changes (temp, pH) |
| Fault-Tolerant Design | Redundancy and modularity prevent total system collapse |
Modeling in Systems Biology¶
- Models = simplified representations
- Help explain and predict behavior
- Not exact copies
Why Mathematical Models?¶
Benefits:¶
- Quantitative Predictions: Move beyond "A activates B" to specific thresholds
- Hypothesis Testing: Build model → simulate → compare to data
- Experimental Design: Reduce lab waste through precise predictions
Modeling Spectrum:¶
| Type | Use |
|---|---|
| Mechanistic | Deep-dive "wiring diagrams" for drug targets |
| Phenomenological | High-speed statistical forecasting |
Deterministic vs Stochastic Models¶
| Type | Scale | Approach |
|---|---|---|
| Deterministic | Millions of cells | ODEs - predictable behavior |
| Stochastic | Single cell | Probabilistic - accounts for noise |
Why Noise Matters:¶
- Cell Fate Decisions: Random noise determines stem cell differentiation
- Bet-Hedging: Bacteria use noise for antibiotic resistance
- Failure Modes: Too much noise leads to age-related diseases
Experimental Data for Systems Biology¶
- High-throughput measurements
- Large datasets (omics technologies)
- Time-series data
Omics Technologies¶
| Technology | Focus |
|---|---|
| Genomics | DNA |
| Transcriptomics | RNA |
| Proteomics | Proteins |
| Metabolomics | Metabolites |

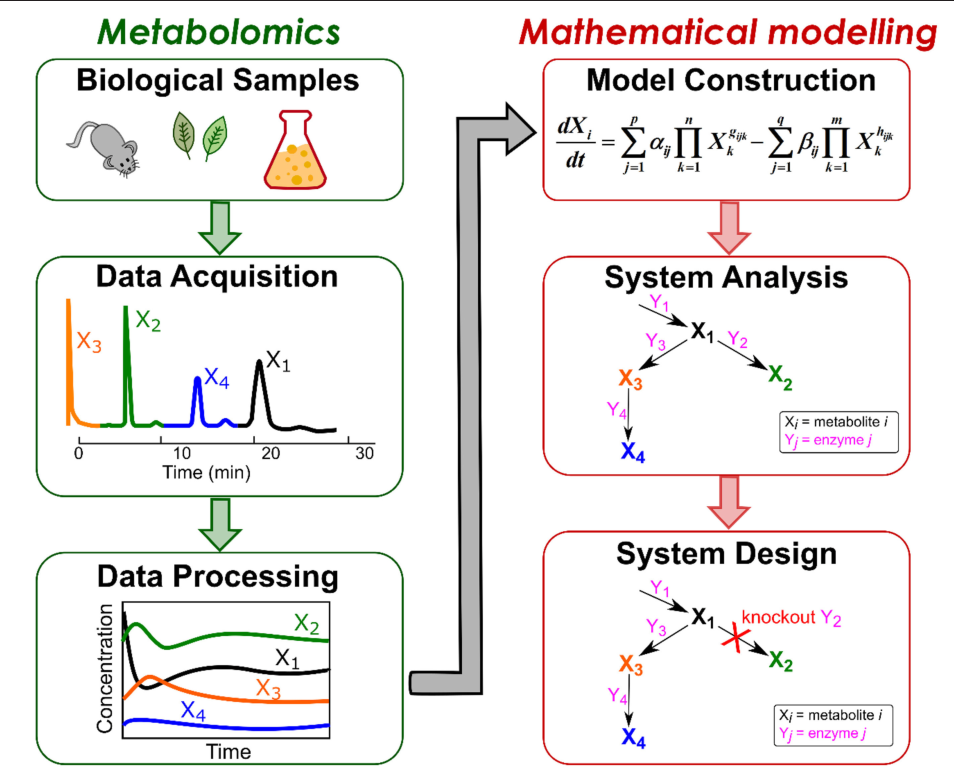

Systems Biology Workflow¶
This is an iterative cycle with an engineering mindset.
Synthetic Biology¶
Definition: The design and construction of new biological parts, devices, and systems, and the re-design of existing natural systems for useful purposes.
Analogy:¶
| Computer | Cell |
|---|---|
| Hardware | Host cell (E. coli, Yeast) |
| Software | Synthetic DNA (Genetic Circuit) |

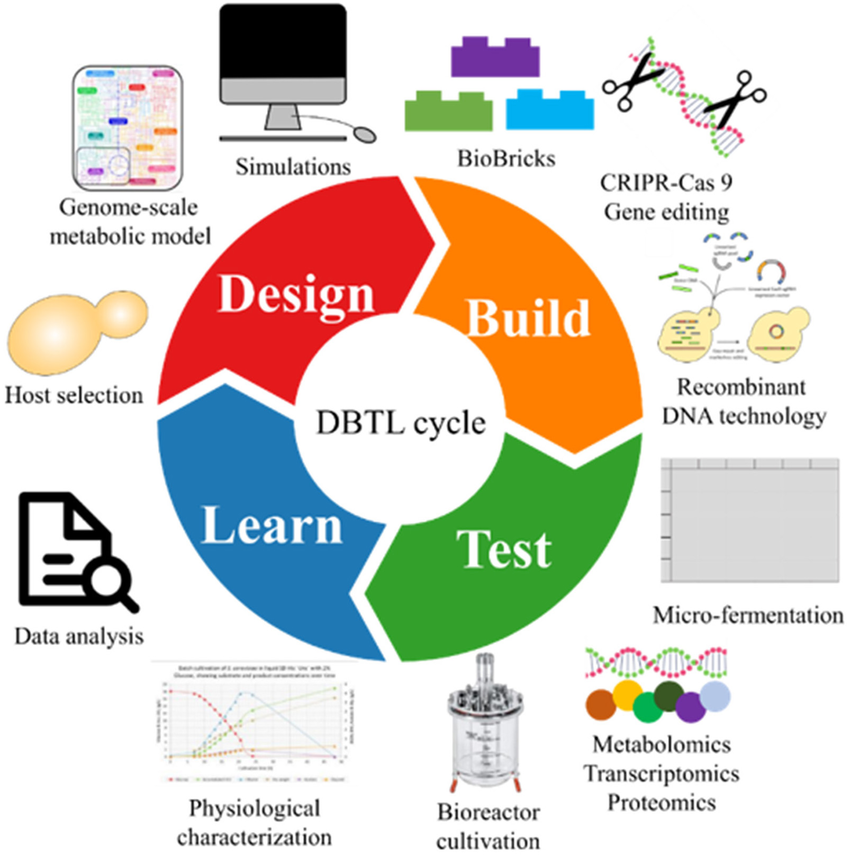

DBTL Cycle (Design-Build-Test-Learn)¶
The core engineering loop in synthetic biology:
| Phase | Description |
|---|---|
| Design | Use computational tools to plan genetic circuits |
| Build | Convert designs to physical DNA using synthesis, BioBricks, CRISPR |
| Test | Evaluate organisms using high-throughput screening and omics |
| Learn | Analyze data (often with AI/ML) to refine models |
Core Tools & Techniques in Synthetic Biology¶
1. DNA Synthesis¶
Scientists chemically create DNA sequences in the lab instead of copying from nature. Allows precise design of genes, promoters, and regulatory elements.

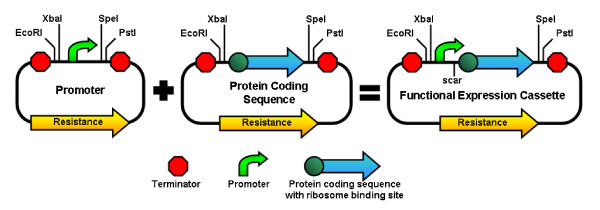

2. BioBricks¶
Standardized DNA parts that can be mixed and matched like LEGO blocks:
- Promoters
- Coding sequences
- Terminators
CRISPR-Cas9¶
Definition: A powerful gene-editing tool adapted from a bacterial defense system.
How it Works:¶
- sgRNA (single guide RNA) directs Cas9 enzyme to specific DNA sequence
- Cas9 cuts the DNA at that location
- Cell repairs the cut, allowing:
- Gene deletion
- Gene correction
- New DNA insertion
Advantages:¶
- ✅ Fast
- ✅ Precise
- ✅ Low-cost

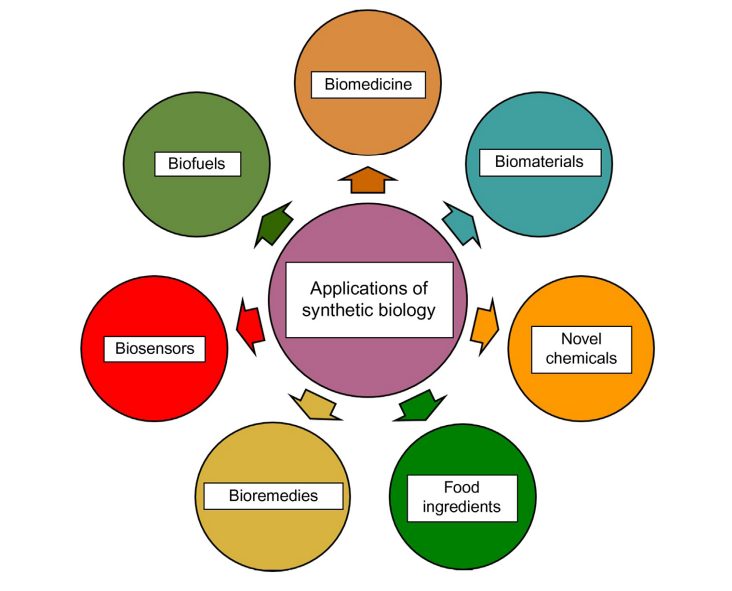

Applications of Synthetic Biology¶
| Application | Description |
|---|---|
| Biomedicine | Modified cells for cancer treatment, vaccines |
| Biofuels | Microbes convert waste/algae to cleaner fuels |
| Biosensors | Cells detect harmful chemicals/viruses with signals |
| Food Ingredients | Lab-grown meat, milk/meat proteins without animals |
| Bioremediation | Microbes clean pollution (oil spills, plastics, metals) |
Future Directions¶
- Synthetic biology - engineering life
- Personalized medicine - treatments based on individual genetics
- Cellular engineering - programming cells
📝 Exam Practice Questions¶
!!! question "Frequently Asked Questions" 1. What is Systems Biology? How does it differ from traditional biology? 2. Explain the three types of biological networks with examples 3. Differentiate between positive and negative feedback loops with examples 4. What is homeostasis? Give examples 5. Explain the concept of robustness in biological systems 6. What is Synthetic Biology? 7. Describe the DBTL cycle 8. How does CRISPR-Cas9 work? 9. List the applications of synthetic biology 10. Explain the relationship between nodes and edges in biological networks
