🔬 Structural Biology

Exam Importance: ⭐⭐⭐⭐ (High)

Key topics to focus on:

- Macromolecules (Proteins, Carbohydrates, Lipids, Nucleic Acids)
- Protein structure levels (Primary, Secondary, Tertiary, Quaternary)
- Experimental methods (Cryo-EM, NMR, X-ray crystallography)
- Structure-function relationship
- Drug design applications

---

Structural Biology: Overview

Definition: Structural biology is the study of the three-dimensional structure of biological macromolecules such as:

• Carbohydrates
• Lipids
• Proteins
• Nucleic acids

Key Principle

The 3D structure of molecules generally defines their function.

---

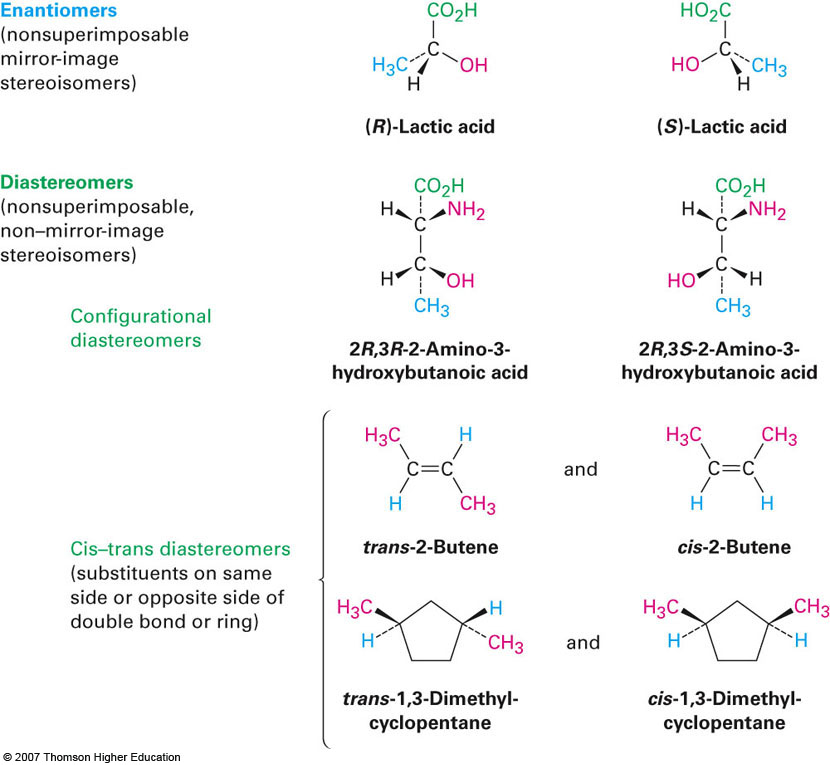

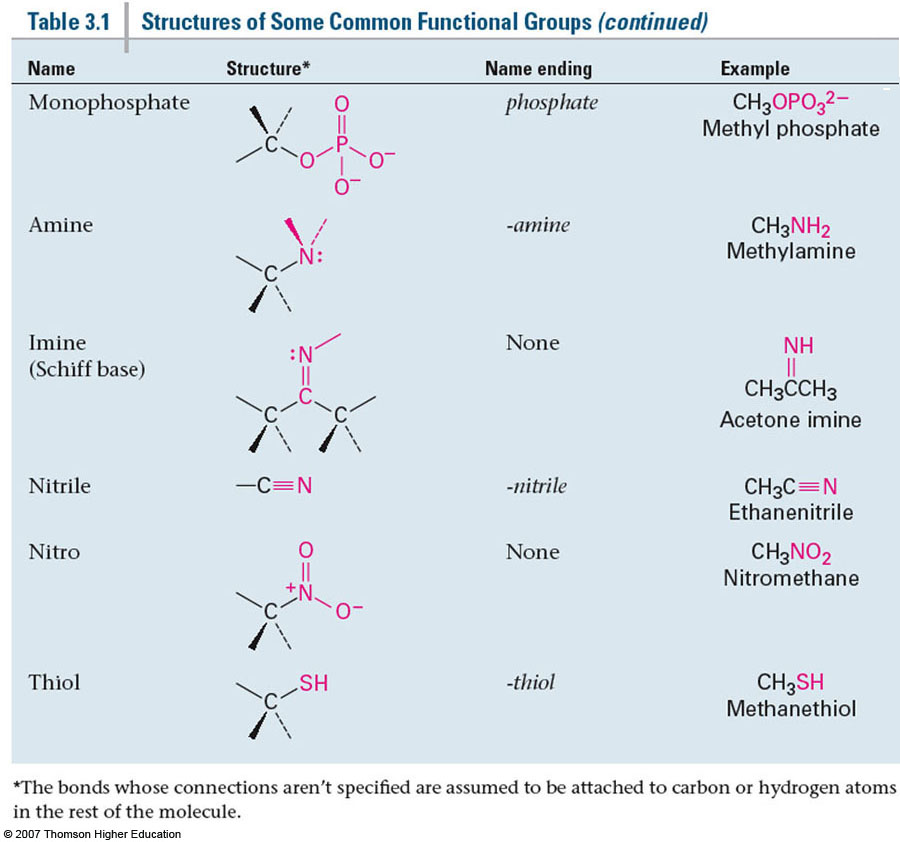

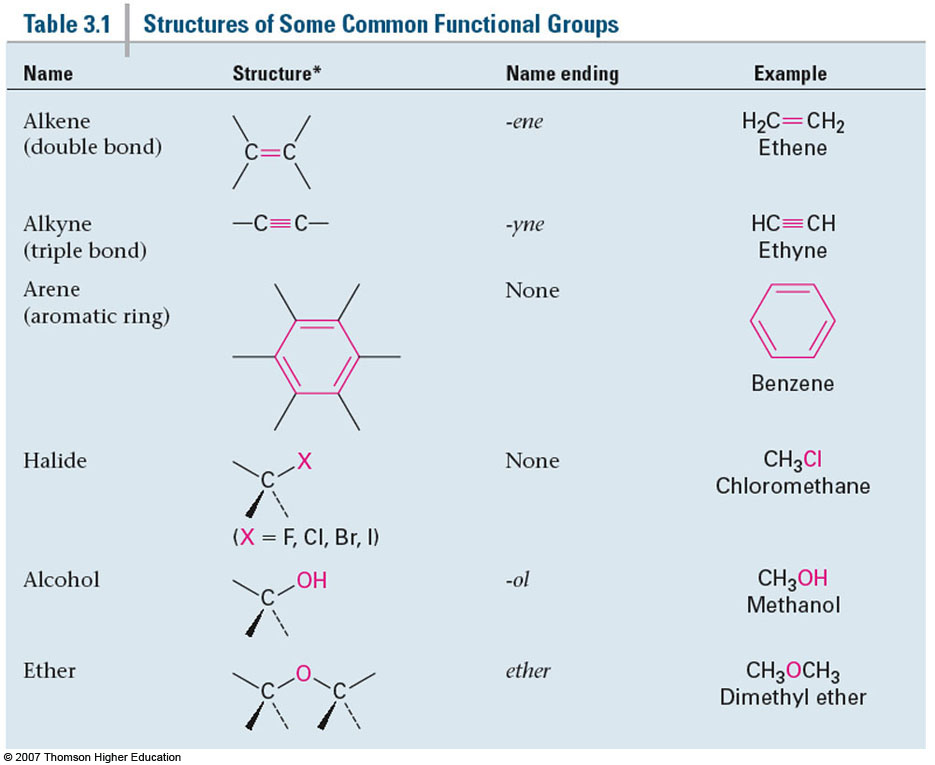

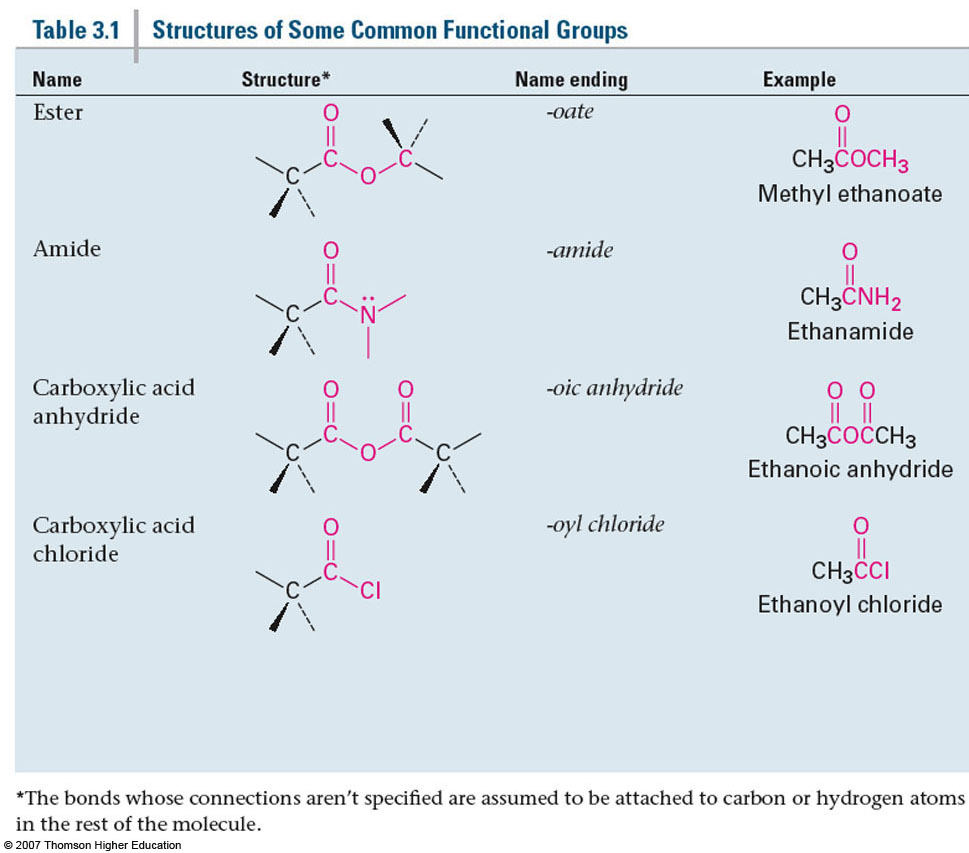

Organic Molecules/Biomolecules & Chirality

Key Features:

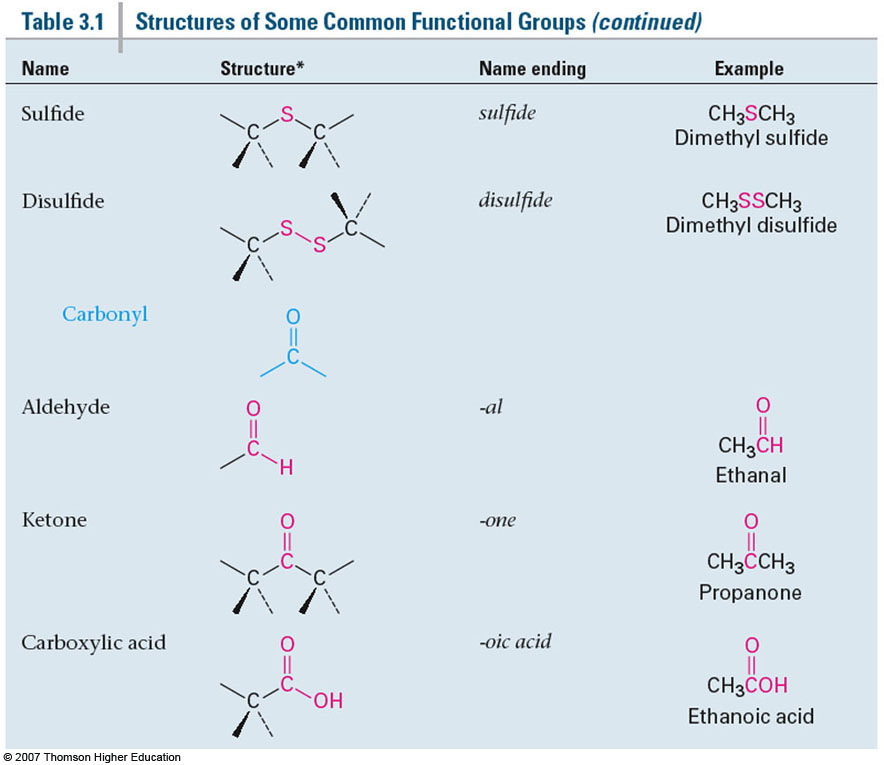

• All are carbon-based molecules with specific functional groups

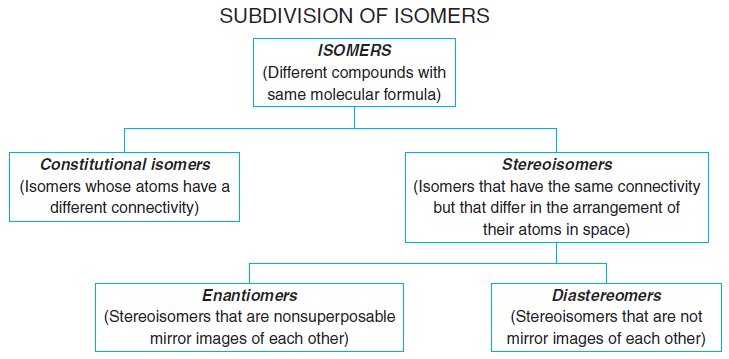

• Their stereochemistry is relevant for biological activity/specificity

---

Biomolecule Structures

---

Macromolecules Overview

The four main classes of biological macromolecules:

1. Proteins
2. Carbohydrates
3. Lipids
4. Nucleic Acids

---

Proteins

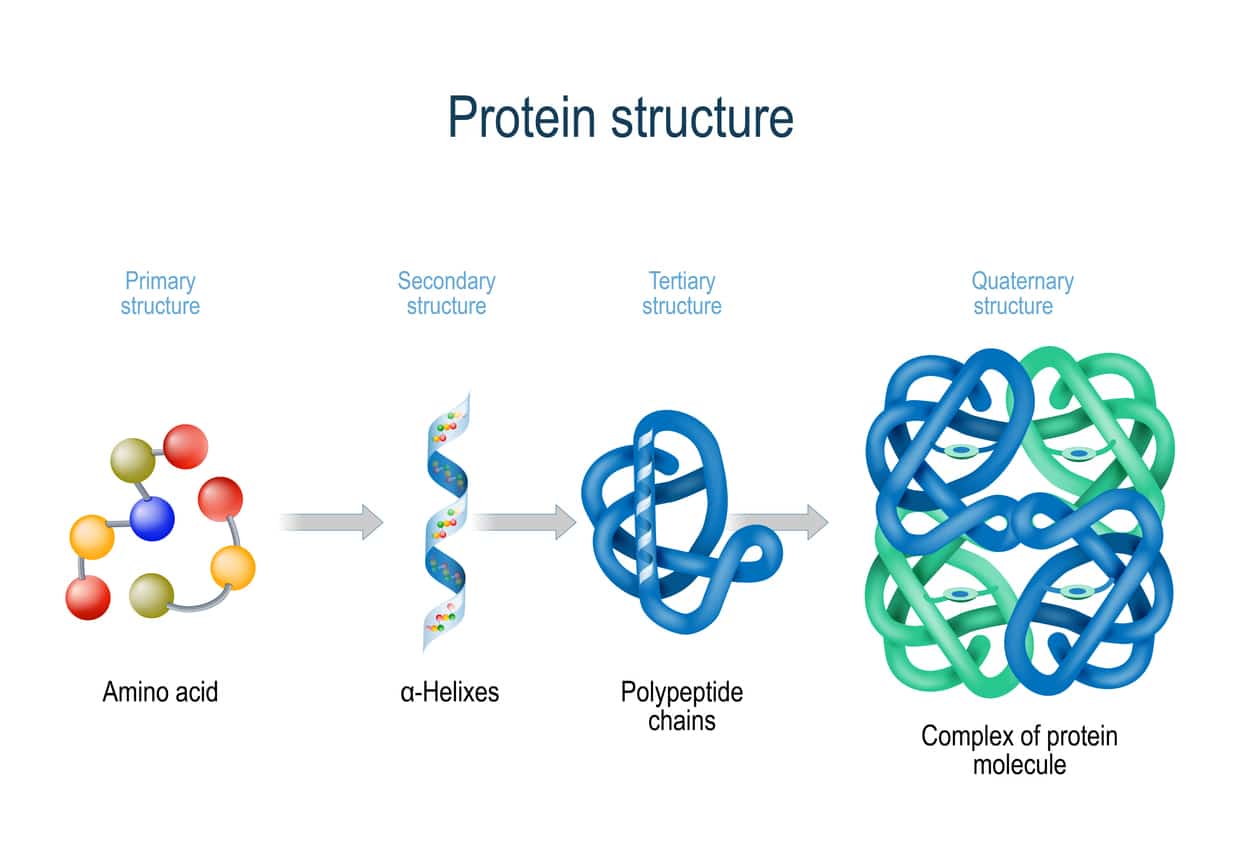

Structure Levels:

Level	Description	Maintained By
Primary	Amino acid sequence	Peptide bonds
Secondary	α-helices & β-sheets	Hydrogen bonds
Tertiary	Folded 3D structural domains	H-bonds, ionic bonds, disulfide bridges, hydrophobic interactions
Quaternary	Multimeric complexes of multiple polypeptide chains	Protein-protein interactions

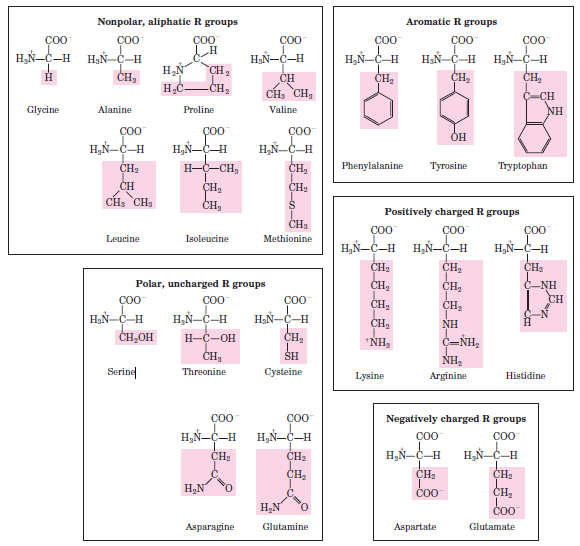

Amino Acid Structure

Proteins are composed of amino acids linked by peptide bonds.

---

Carbohydrates

Definition: Polyhydroxylated aldehydes and ketones

Key Characteristics:

• Have roughly as many O's as C's (highly oxidized)
• Empirical formula: (C(H₂O))ₙ - appears like "carbon hydrate"
• Natural materials containing many hydroxyls and oxygen-containing groups
• Monosaccharides join through glycosidic linkages
• Form glycans or oligo/polysaccharides

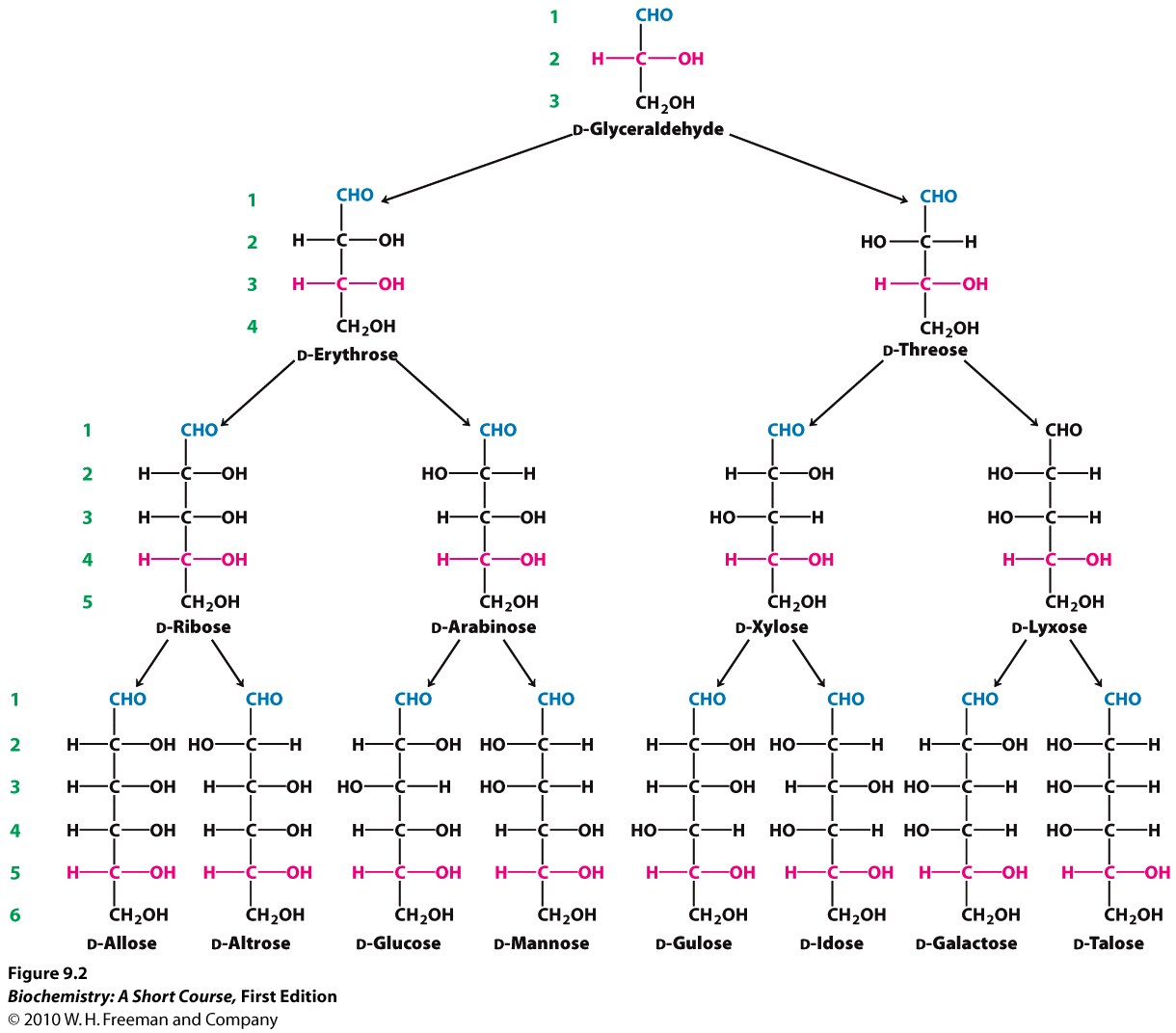

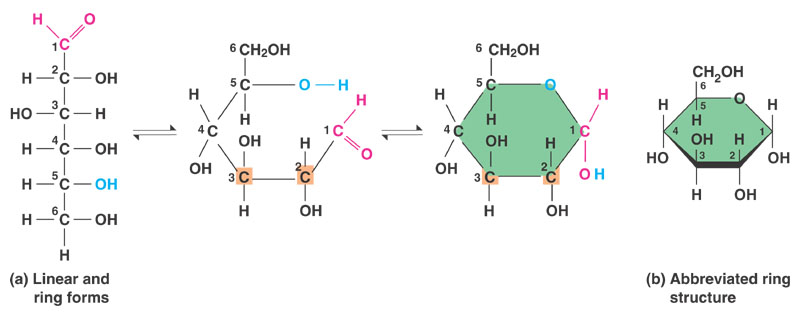

Glucose Structure

---

Lipids

Definition: Natural materials that preferentially extract into nonpolar organic solvents

Types:

• Fats
• Oils
• Waxes
• Some vitamins and hormones
• Membrane components

Examples:

Type	Components

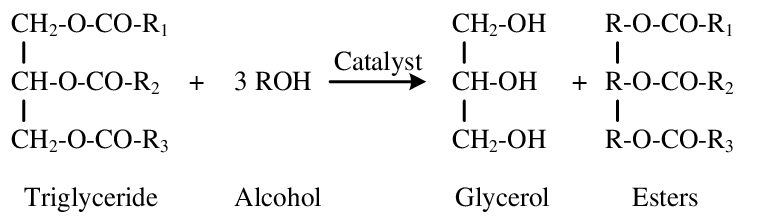

Triacyl Glycerol	Fatty acids + Glycerol

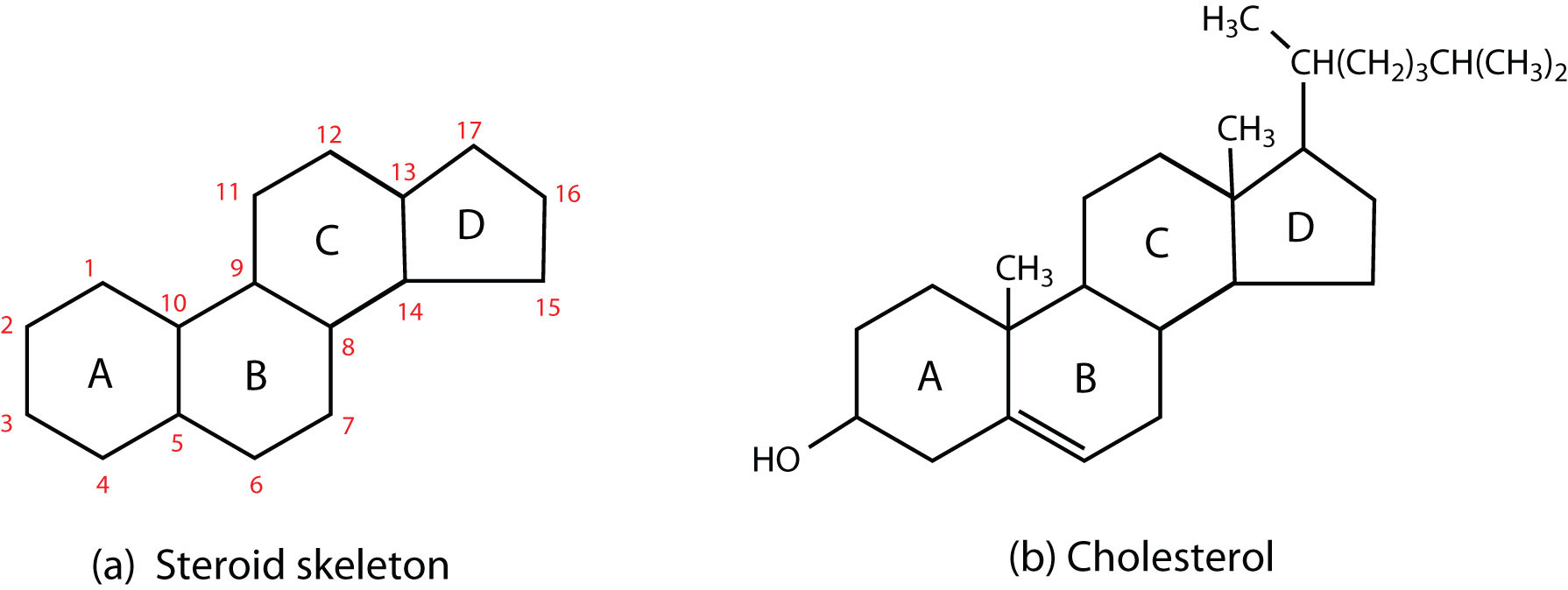

Steroids	Four-ring structure (e.g., cholesterol)

---

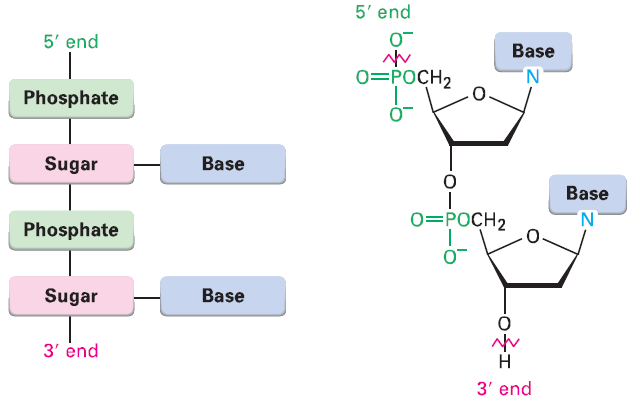

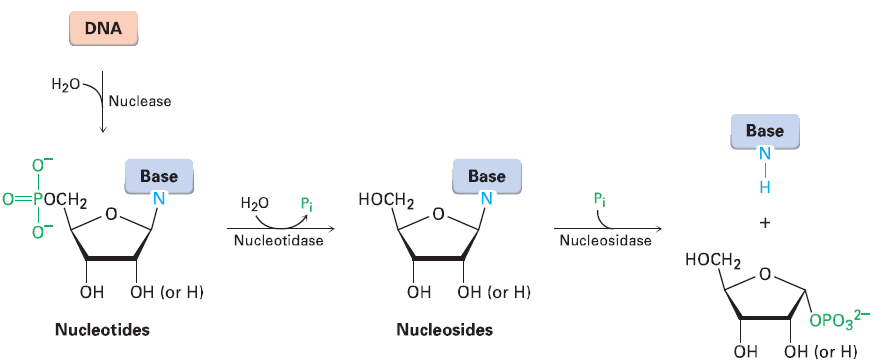

Nucleic Acids

Definition: Biopolymers made of nucleotides

Structure:

• Aldopentoses linked to purine/pyrimidine and phosphate
• Nucleotides joined by phosphate between 5' and 3' positions

---

Structure-Function Relationship

Importance:

• Ensures binding specificity to active sites

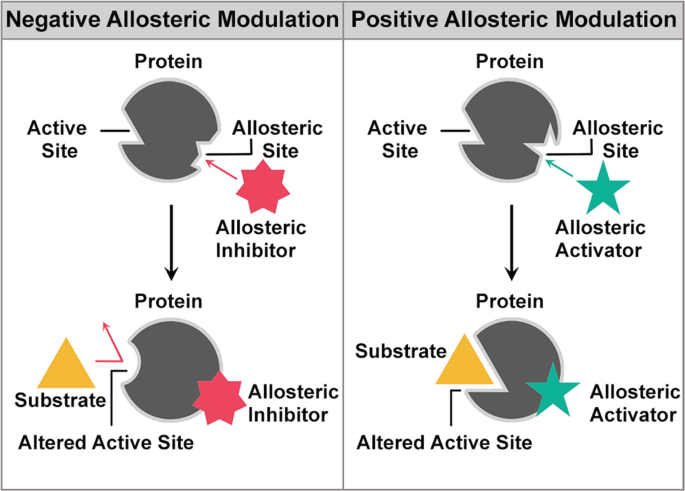

• Allosteric modulation requires binding specificity at allosteric sites
• Structure determines function in all biological molecules

---

Experimental Methods

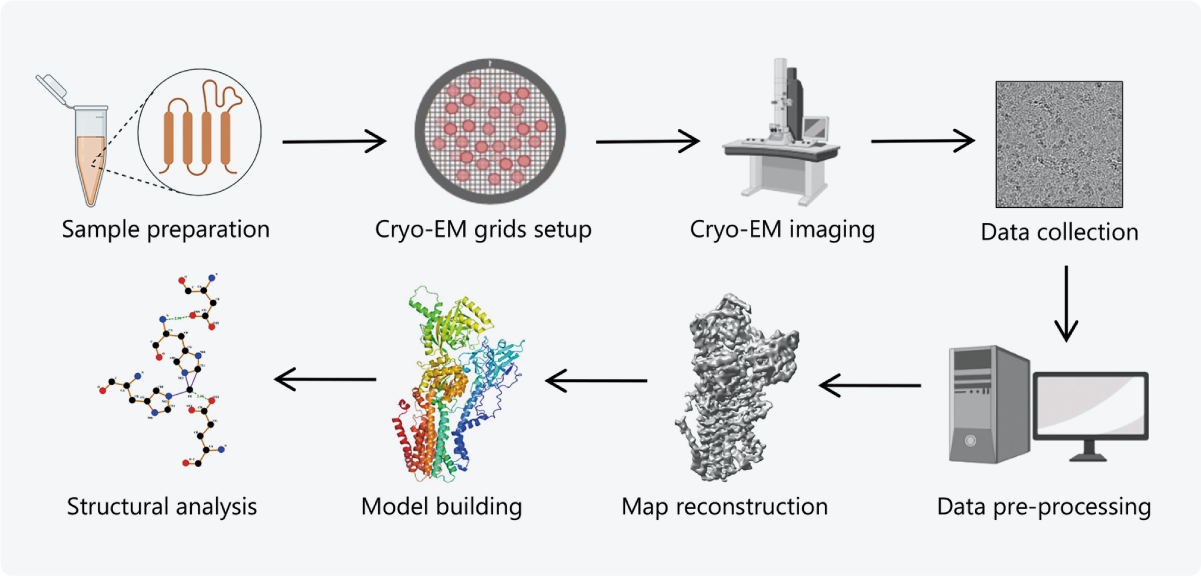

1. Cryo-Electron Microscopy (Cryo-EM)

Purpose: Determine 3D structures of biomolecules in near-native state

Basic Principle:

1. Rapidly freeze purified sample → preserves natural structure
2. Pass electron beam through frozen sample → capture 2D images
3. Use computational reconstruction → generate high-resolution 3D structure

Advantages:

Feature	Benefit
No crystallization needed	Unlike X-ray crystallography
Works for large complexes	Membrane proteins too
Preserves native conformation	True biological state

---

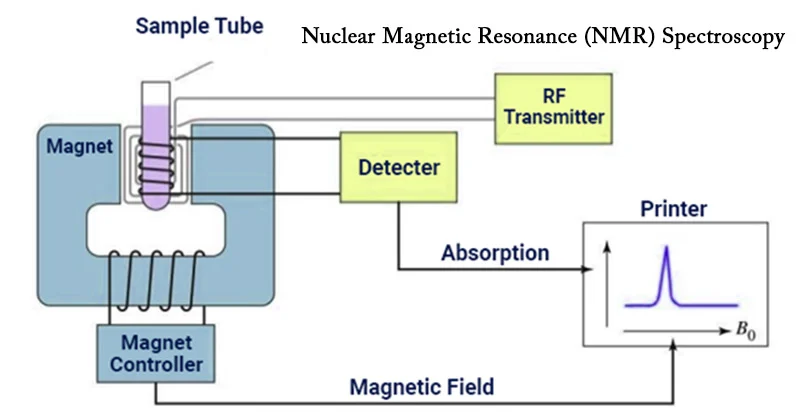

2. Nuclear Magnetic Resonance (NMR) Spectroscopy

How it Works:

1. Atomic nuclei (¹H, ¹³C) act like tiny spinning magnets
2. In strong magnetic field, they align
3. Absorb radio waves to flip to higher energy state
4. Emit energy as they relax back
5. Signal reveals chemical environment and structure

Output: Computer processes signals via Fourier Transform into a spectrum with unique peaks for different nuclei.

---

3. Complementary Techniques

Technique	Function
Mass Spectrometry	Ionizes sample, separates by mass-to-charge ratio (m/z)
Computational Modeling	Predicts structures in silico
Small Angle X-Ray Scattering (SAXS)	Low-resolution structural info in solution

---

Databases for Structural Biology

Database	Content

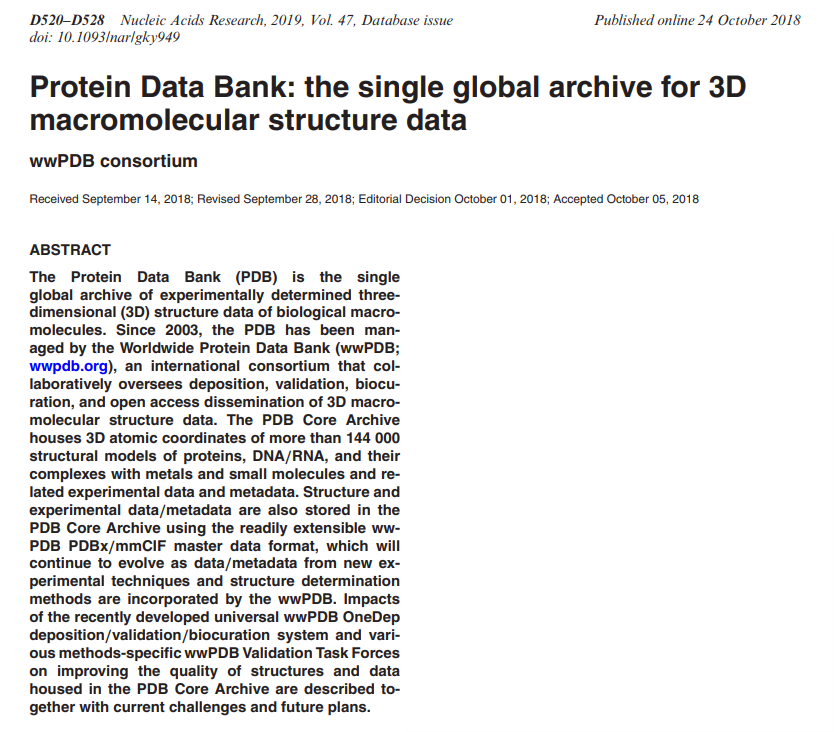

Protein Data Bank (PDB)	3D protein structures
Electron Microscopy Data Bank (EMDB)	Cryo-EM maps
Biological Magnetic Resonance Bank (BMRB)	NMR data

---

Integrated Applications of Structural Biology

1. Structure-Based Drug Design

Process:

Target Structure → Docking → Lead Identification → Lead Optimization

Key Concepts:

• Binding pockets
• Affinity vs. specificity
• ADME considerations

Examples: Kinase inhibitors, antiviral protease inhibitors

---

2. Protein Engineering

Two Approaches:

Approach	Description
Rational Design	Altering amino acids using structural knowledge
Directed Evolution	Mutagenesis + selection cycles

Applications:

• Enzymes with altered substrate specificity
• Improved thermostability
• Synthetic pathways

---

3. Computational Structural Biology

Method	Function
Molecular Dynamics (MD)	Simulates motions, conformational changes
Homology Modeling	Predicts structure from similar templates

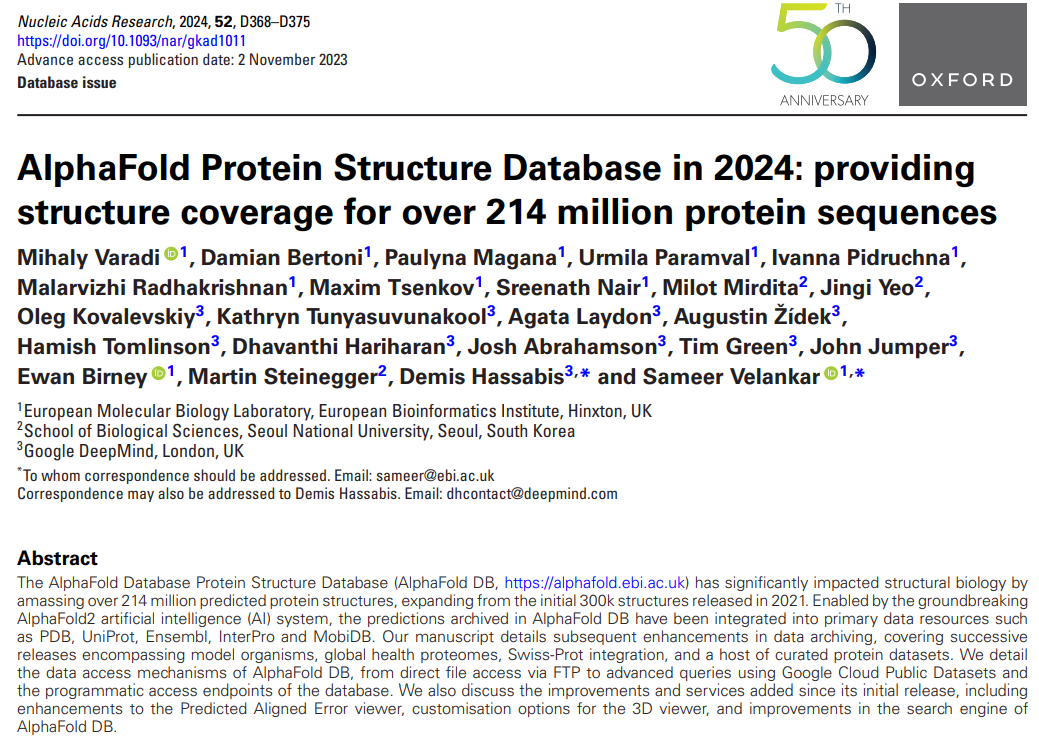

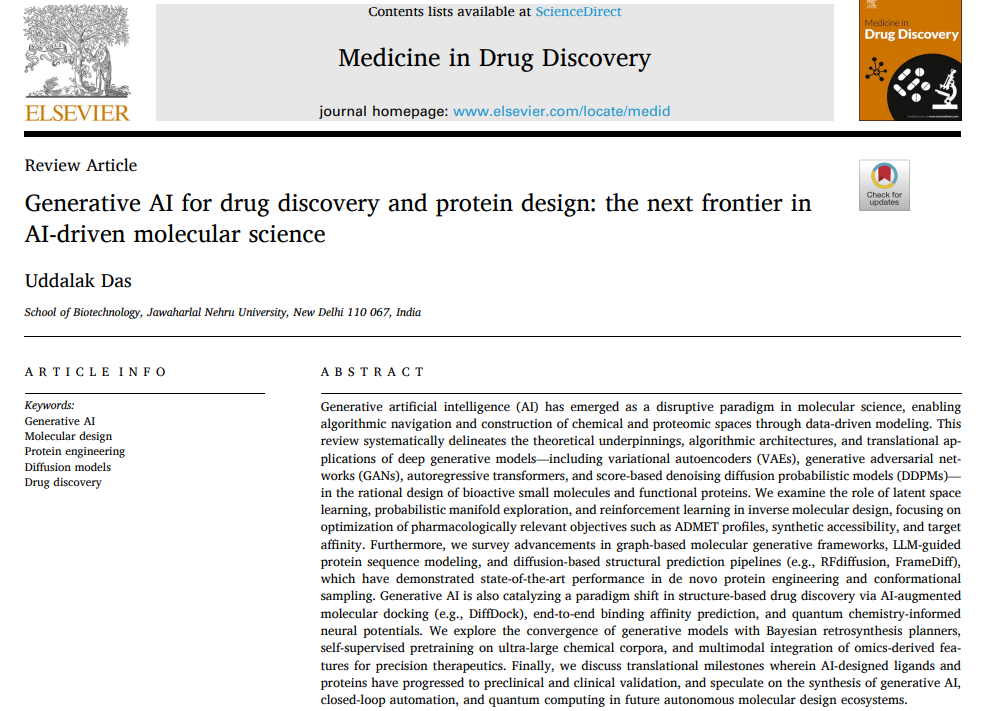

AI-based Modeling	Deep-learning predictions (e.g., AlphaFold)

Applications: Supports drug design and protein engineering by predicting interactions and conformational flexibility.

---

Summary: Macromolecules Comparison

Macromolecule	Monomer	Linkage	Function
Proteins	Amino acids	Peptide bonds	Enzymes, structure, transport
Carbohydrates	Monosaccharides	Glycosidic bonds	Energy, structure
Lipids	Fatty acids/glycerol	Ester bonds	Energy storage, membranes
Nucleic Acids	Nucleotides	Phosphodiester bonds	Genetic information

---

📝 Exam Practice Questions

!!! question "Frequently Asked Questions" 1. Define structural biology and explain its importance 2. Describe the four levels of protein structure 3. What are carbohydrates? Explain glycosidic linkages 4. Differentiate between the four types of macromolecules 5. Explain the basic principle of Cryo-EM 6. How does NMR spectroscopy work? 7. What is structure-based drug design? 8. Explain the difference between rational design and directed evolution 9. List the databases used in structural biology 10. Why is the structure-function relationship important in biology?
