🧠 Brain Computer Interface (BCI)

Exam Importance: ⭐⭐⭐⭐ (High)

Key topics to focus on:

- Neuroscience basics (CNS, PNS)
- Neuron structure and classification
- Synapses and neurotransmission
- Action potential
- BCI technology and applications

What is Neuroscience?

Neuroscience is the study of the nervous system, particularly the Central Nervous System (CNS).

Components:

System Description
CNS Brain and spinal cord - organs that allow decisions and relay them to the body
PNS Peripheral Nervous System - carries instructions from spinal cord to effector organs

Brain Size and Intelligence

Brain Size

Does bigger brain size mean higher intelligence?

No! Larger animals have larger brains, but this relates more to body size than intelligence.

For example, cows have bigger brains than most monkeys, but this is because of their larger bodies, not higher intelligence.

Several factors determine intelligence - that's why we need to know the structure and function of the brain.

Major Parts of the Brain

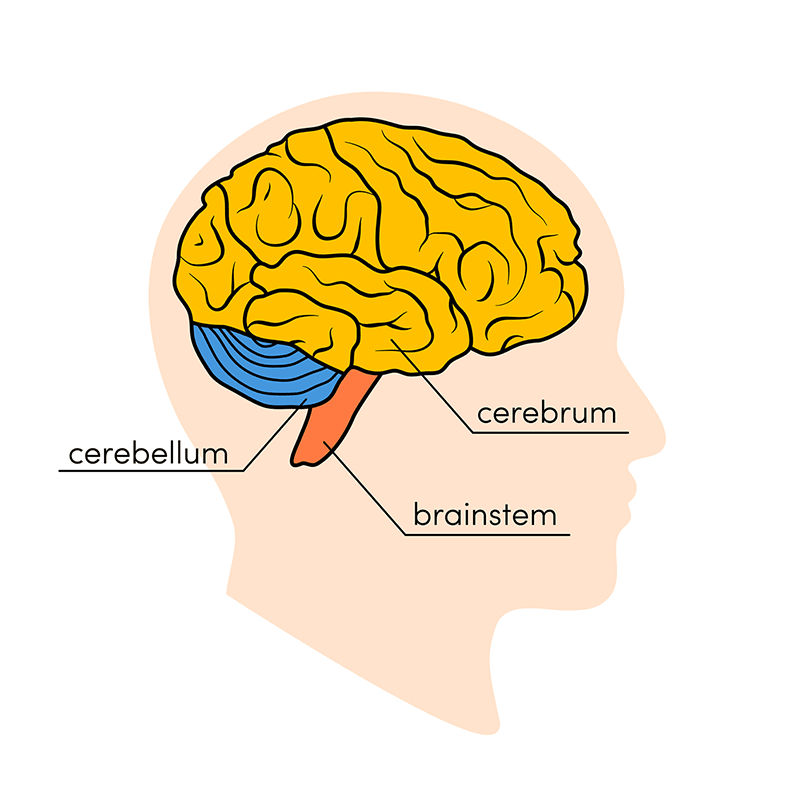

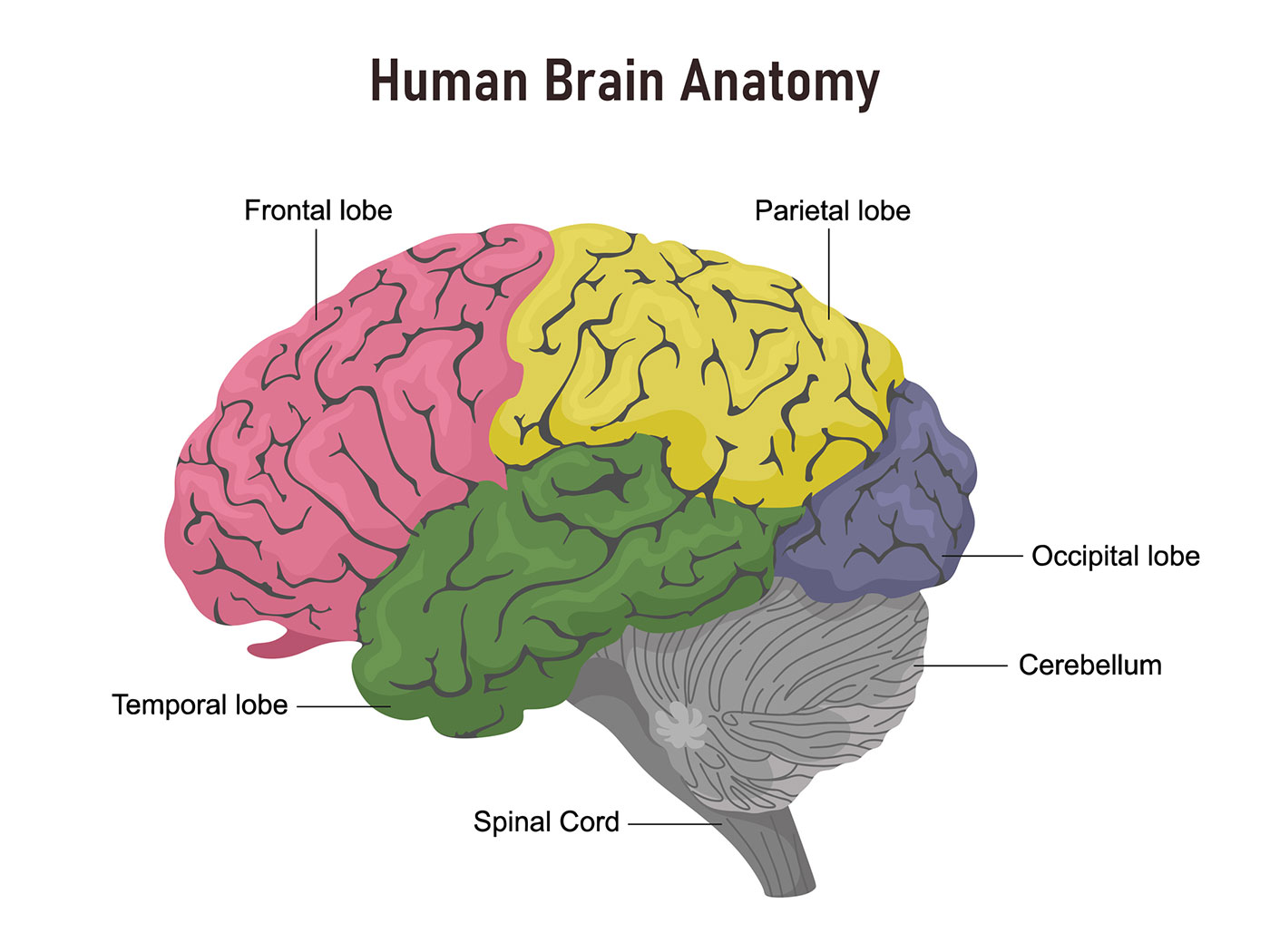

Brain Parts 1 Brain Parts 2

Three Major Parts:

  1. Cerebrum (Forebrain)
  2. Cerebellum (Hindbrain)
  3. Brain Stem (Mid-brain, pons, and medulla)

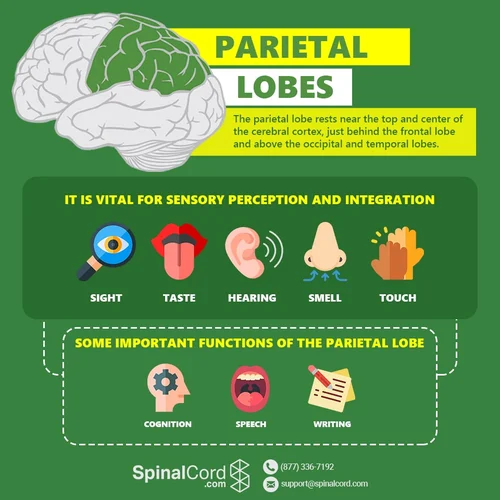

Brain Structure Details

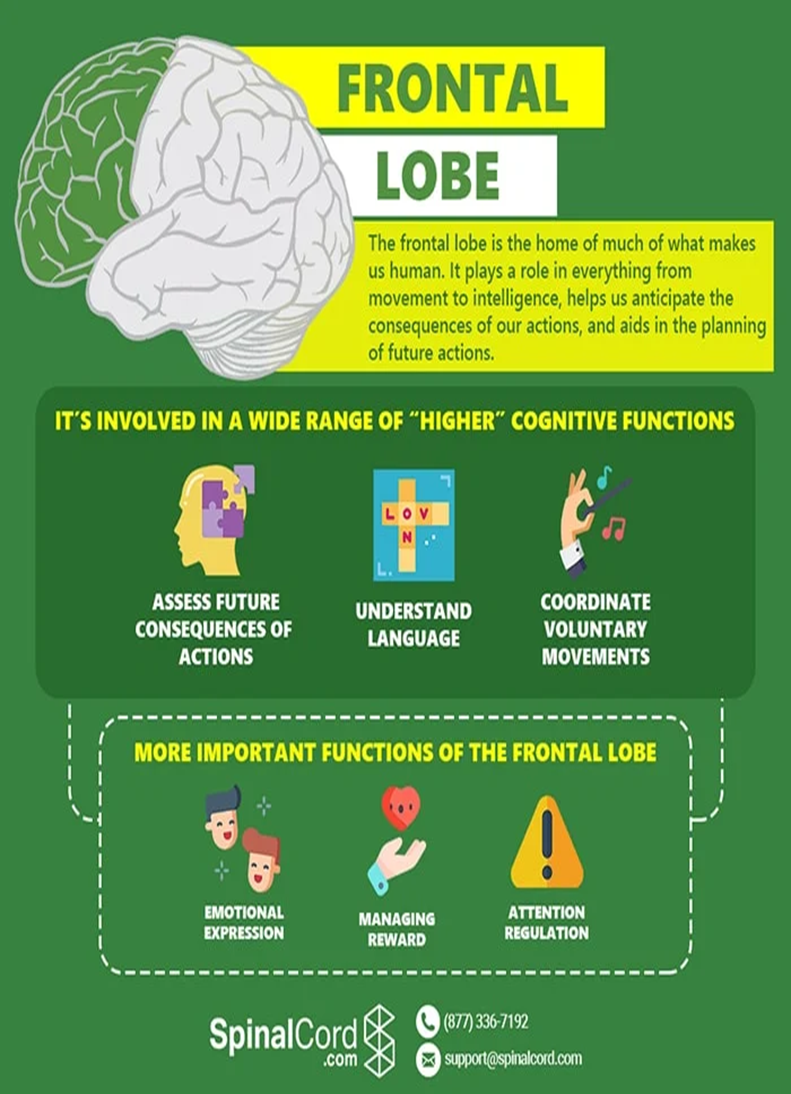

Brain Structure 1 Brain Structure 2

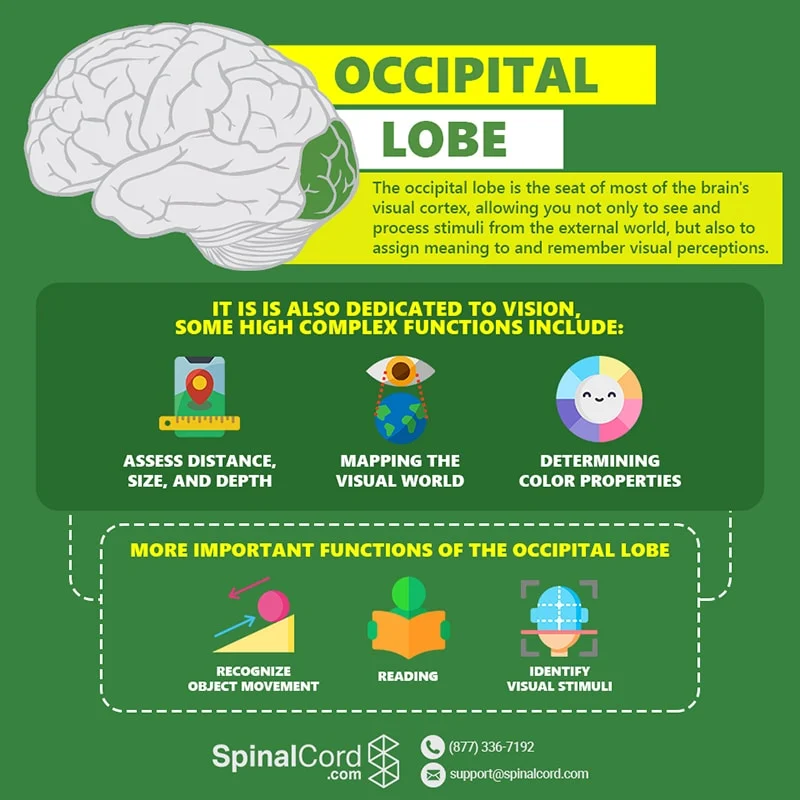

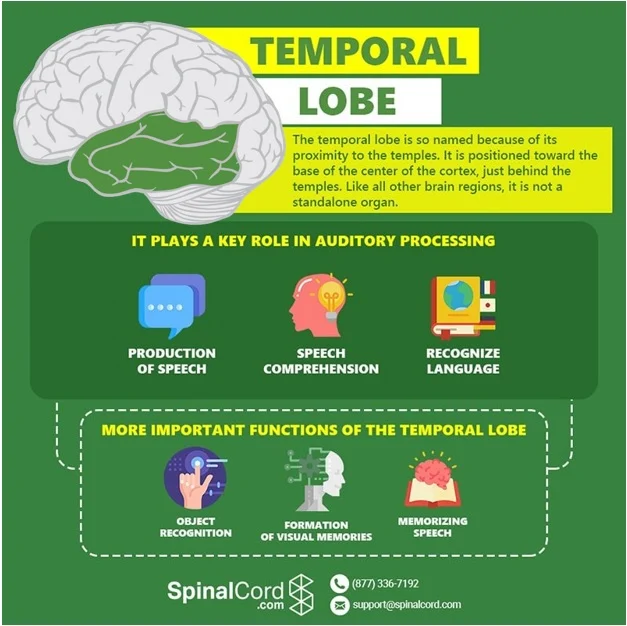

Brain Functions 1 Brain Functions 2

What is the Brain Made Of?

The bulk of the brain is made up of:

  • Structural cells: Glial cells and astrocytes
  • Neurons: Specialized cells that conduct electrical impulses

!!! info "Key Facts" - The average human brain contains about 100 billion neurons - On average, each neuron is connected to 1000 other neurons - This creates vast and complex neural networks for processing

Neuron (Nerve Cell)

Definition: The structural and functional unit of the nervous system.

Unique Characteristics:

Feature Description
Branches Has axons and dendrites
No division Doesn't have centrosome, cannot undergo division

Classification of Neurons

Based on Number of Poles:

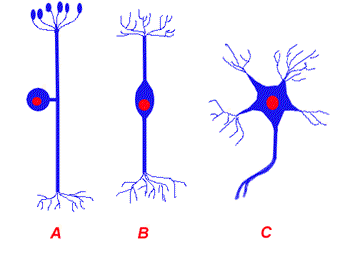

Neuron Types

Type Description Example
Unipolar/Pseudounipolar Single process that branches like a T Sensory neurons
Bipolar Two processes Retina of the eye
Multipolar Several dendrites and 1 axon Motor neurons

Based on Function:

  • Motor (Efferent) neurons - conduct impulses to effector organs
  • Sensory (Afferent) neurons - conduct impulses to CNS

Based on Axon Length:

  • Golgi type I neurons - long axons
  • Golgi type II neurons - short axons

Structure of Neuron

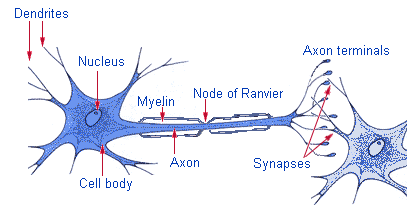

Neuron Structure 1 Neuron Structure 2 Neuron Structure 3

Three Major Regions:

  1. Cell Body - contains nucleus and organelles
  2. Single Axon - transmits signals away from cell body
  3. Variable Number of Dendrites - receive signals

The Nervous System Functions

The nervous system is an electrochemical communication system that:

  1. ✅ Receives sensory messages from external environment
  2. ✅ Organizes and integrates information with stored information
  3. ✅ Sends messages to muscles and glands for organized movement
  4. ✅ Provides the basis for conscious experience

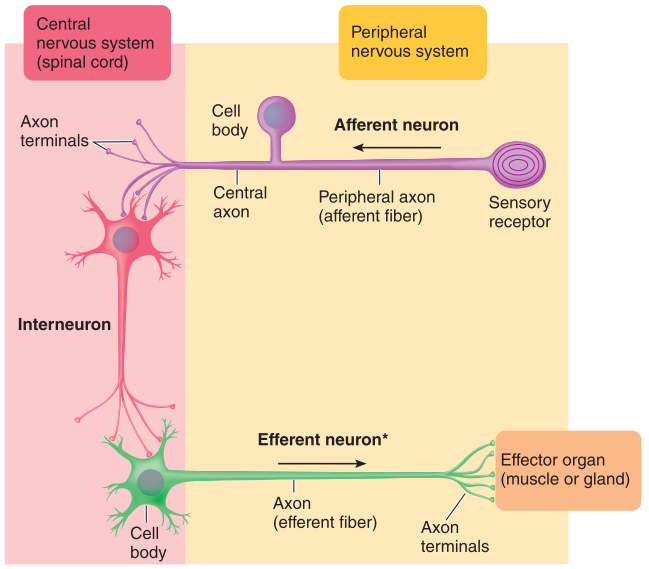

Sensory vs Motor Neurons

Neuron Functions

Type Direction Function
Sensory (Afferent) To CNS Carry information from sensory receptors
Motor (Efferent) From CNS Regulate muscular movement or glandular secretion
Interneurons Within CNS Serve integrative function

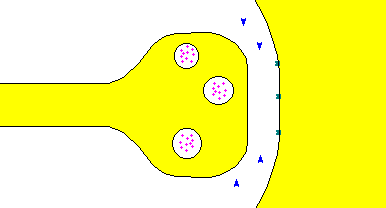

Synapse

Definition: Functional connection between a neuron and another neuron or effector cell.

Key Features:

  • Transmission in one direction only: axon of presynaptic → postsynaptic neuron
  • Synaptic transmission is through a chemical gated channel
  • Presynaptic terminal (bouton) releases neurotransmitters via exocytosis

Synapse

Sequence of Events at Chemical Synapse

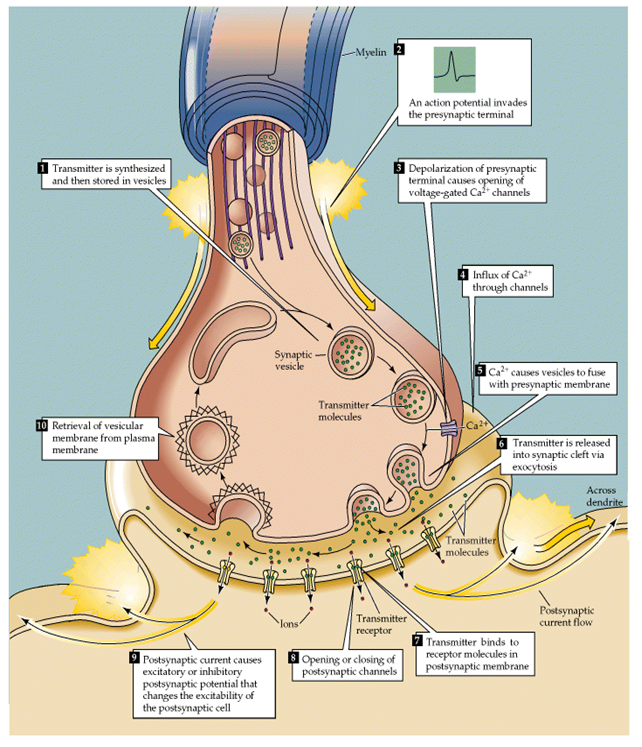

Synapse Events

Synaptic Transmission

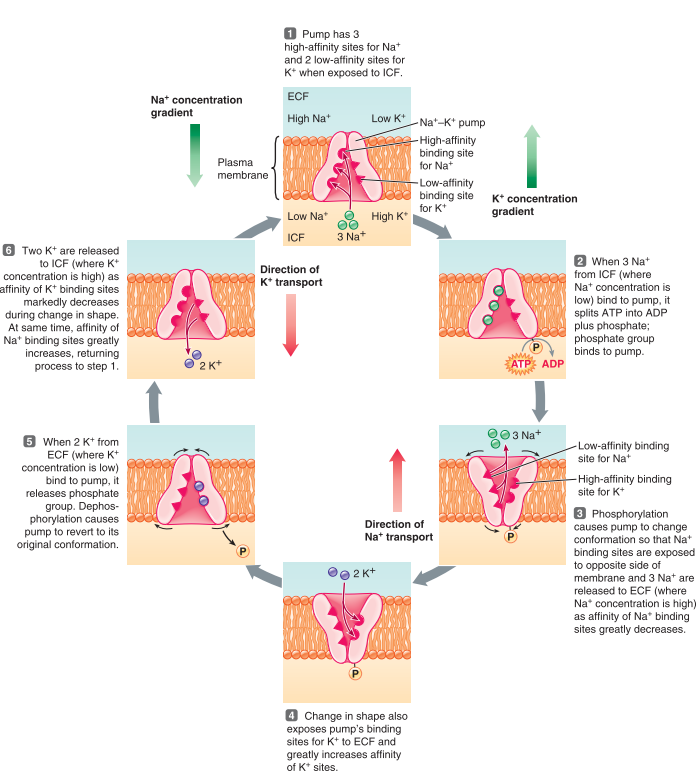

Na⁺-K⁺ ATPase Pump

Sodium Potassium Pump

Functions:

  1. Establishes concentration gradients - Na⁺ and K⁺ across plasma membrane
  2. Regulates cell volume - controls solute concentrations
  3. Energy source - indirectly serves as energy for secondary active transport
  4. Basis of nerve action - responsible for maintaining membrane potential

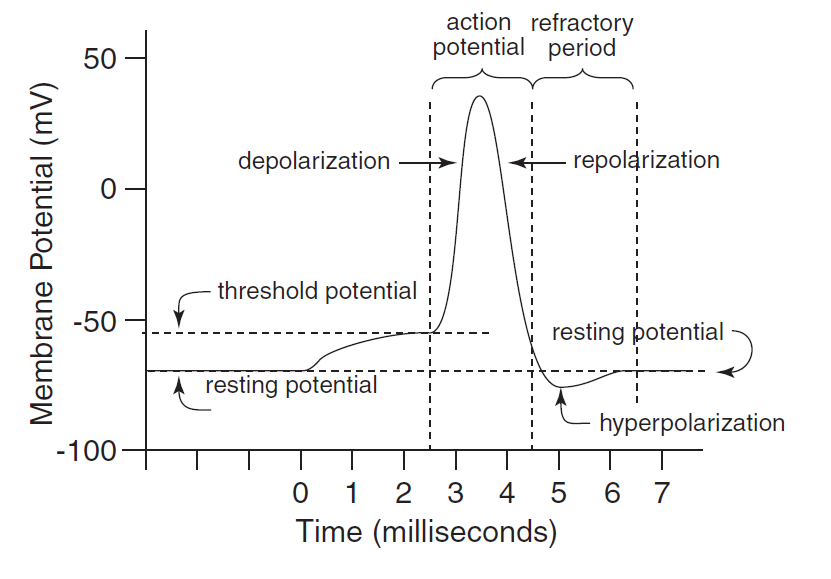

Action Potential

Action Potential

Process:

  1. Stimulus causes depolarization to threshold
  2. VG Na⁺ channels open
  3. Electrochemical gradient inward
  4. Positive feedback loop
  5. Rapid change from -70 to +30 mV
  6. VG Na⁺ channels become inactivated
  7. VG K⁺ channels open
  8. Electrochemical gradient outward
  9. Negative feedback loop
  10. Restore original RMP (Resting Membrane Potential)

Neuroengineering

History

Neural engineering has been with us since 1780 when Luigi Galvani discovered that muscles could be stimulated electrically.

Major Advances:

Development Description
Cochlear Implant (1970s) Over 300,000 deaf individuals have regained hearing
Deep Brain Stimulation Control of Parkinson's Disease

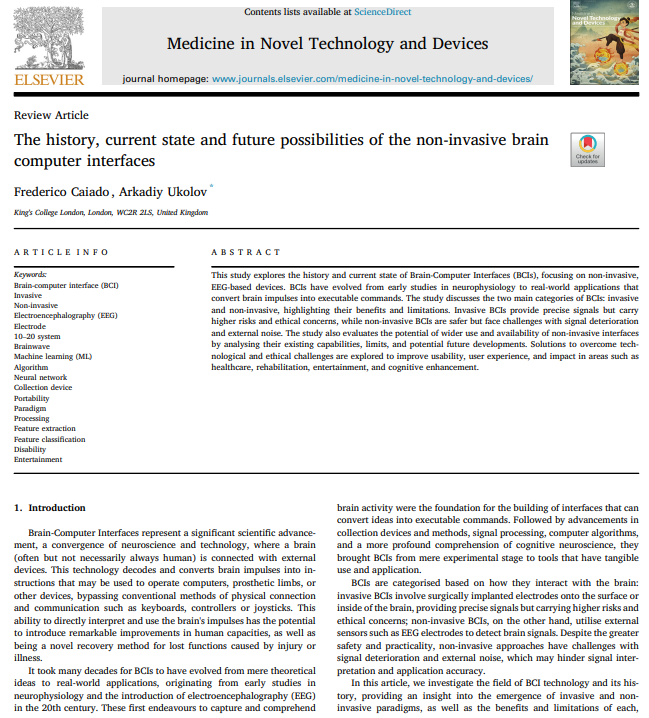

Neuroengineering

What is Brain Computer Interface (BCI)?

Definition: A system that determines functional intent directly from brain activity, allowing control of applications or devices using only your mind.

How it Works:

Normal Process:

Decision → Muscle Coordination → Action → Device Response

BCI Process:

Decision → Computer Interpretation → Direct Device Response

Key Application

BCIs bypass the need for muscle coordination, making them promising for people with severe physical disabilities.

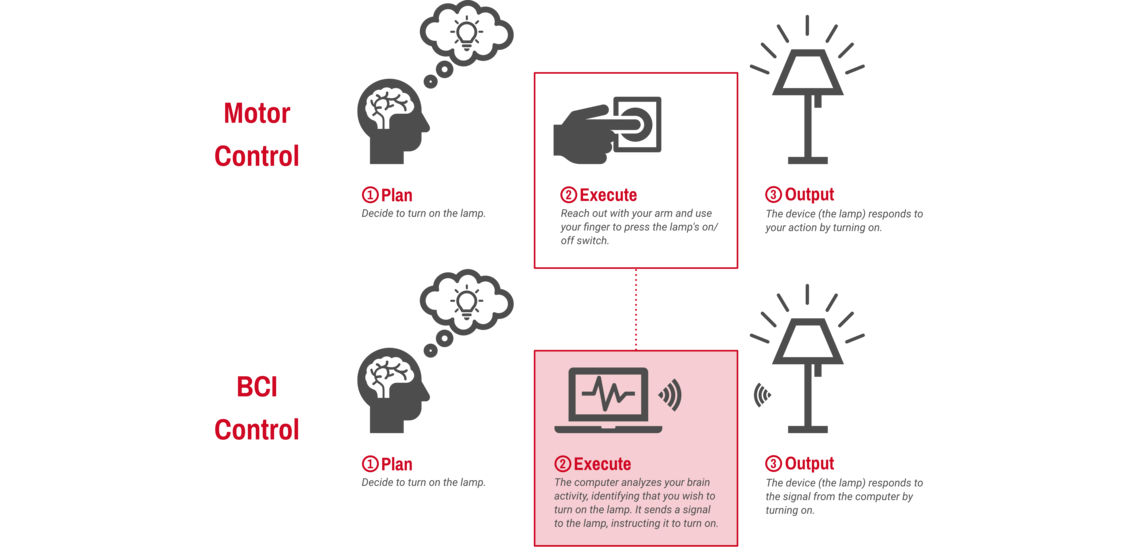

BCI Overview

Parts of Brain Computer Interface

Three Main Components:

Component Function
1. Brain Activity Measurement Device Headset/cap/headband with sensors to detect brain signals
2. Computer Processing Software analyzes and interprets brain activity
3. Application/Device Executes the interpreted command

What is 'Brain Activity'?

Understanding Neural Communication:

  • Brain contains millions of neurons working in networks
  • Neurons communicate using electrochemical signals
  • Collective activity produces enough electrical activity to detect outside the head

Measurement:

  • Electrodes placed on the head record electrical activity
  • This method is called Electroencephalography (EEG)
  • Many BCI systems use EEG to record brain activity

Who Can Use BCI?

Primary Applications:

  • Locked-in Syndrome - people who lost all muscle control
  • ALS patients - long-term neurodegenerative disease
  • Physical disabilities - replace, restore, or supplement muscle control

Specific Uses:

  • ✅ Power wheelchair control
  • ✅ Prosthetic limb control
  • ✅ Communication devices
  • ✅ Functional electrical stimulation (FES) therapy

Emerging Applications:

  • Fatigue assessment (air traffic controllers, truck drivers)
  • Video games and virtual reality
  • Neuromarketing
  • Meditation monitoring devices

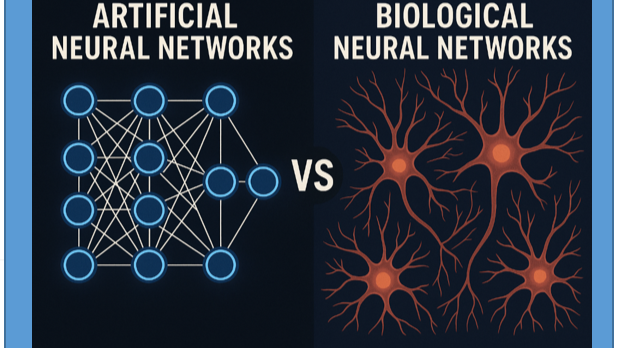

Neural Networks

Artificial Neural Networks (ANNs) are computer systems designed to mimic how the human brain processes information.

Key Features:

  • Use artificial neurons to analyze data, identify patterns, make predictions
  • Consist of layers of interconnected neurons
  • Can "learn" from data they process

Neural Networks

Working of Artificial Neural Networks

Training Process:

ANNs learn patterns through training - adjusting themselves to improve accuracy.

Structure:

Layer Function
Input Layer Data (image, text, number) enters the network
Hidden Layers Neurons perform calculations, data is transformed
Output Layer Final prediction (e.g., cat or dog classification)

📝 Exam Practice Questions

!!! question "Frequently Asked Questions" 1. What is Neuroscience? 2. Describe the structure of a neuron 3. Classify neurons based on number of poles and function 4. Explain how synaptic transmission occurs 5. Describe the action potential process 6. What is a Brain Computer Interface and how does it work? 7. List the applications of BCI 8. Explain the Na⁺-K⁺ ATPase Pump function
